Draft ETSI EN 301 908-13 V13.2.0 update

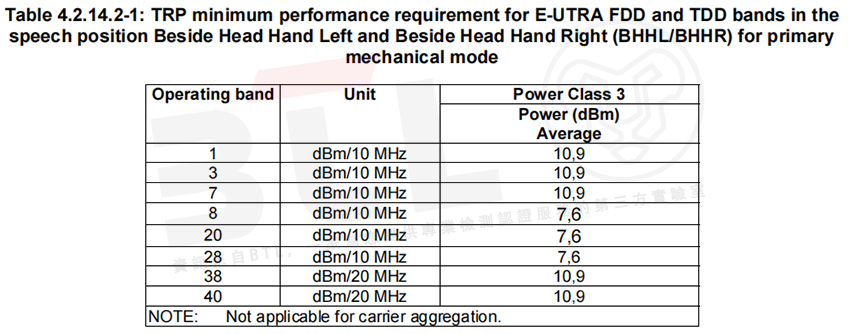

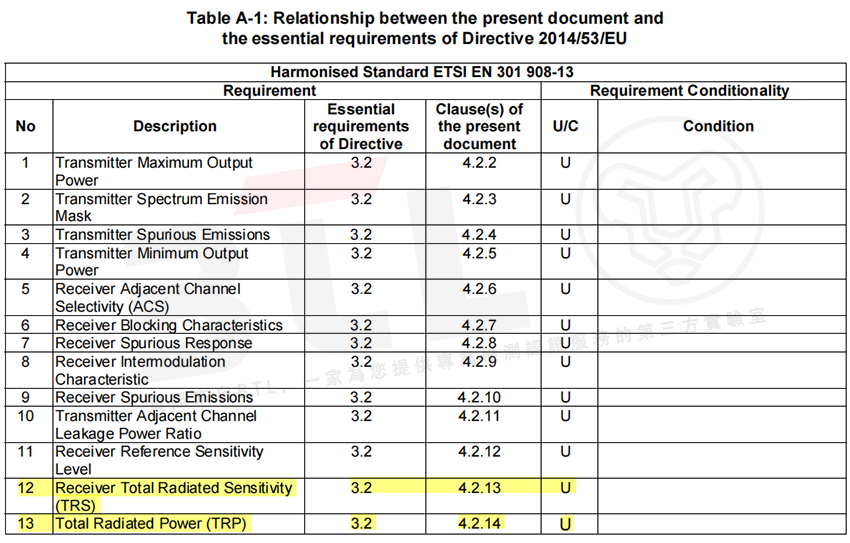

The main content of the draft standard EN 301 908-13 V13.2.0 is updated from the V13.1.1 & V13.2.0 (Draft) test items, it is found the new-added OTA test items in TRS and TRP on below table yellow highlight:

The new version of the standard adds two test items, i.e., TRS and TRP. These which are the key OTA test items. Following the addition of OTA testing to WCDMA last year, ETSI officially incorporated LTE OTA testing into the CE standard, which not only embodies LTE cellular communication performance testing in the most intuitive way, but also escalate achieve the height of the test performance for LTE cellular communication.

These two OTA tests require BHHR (Beside Head Hand Right) and BHHL (Beside Head Hand Left) modes, i.e., right head + right hand and left head + left hand. Currently, only the following states are applicable:

Product width size: 56 mm ≤ EUT ≤ 72 mm

Required frequency band LTE Band 1/3/7/8/20/28/38/40

Test procedure, refer to ETSI TS 137 544 User Equipment (UE) Over The Air (OTA) performance; Conformance testing for reverberation chamber method.

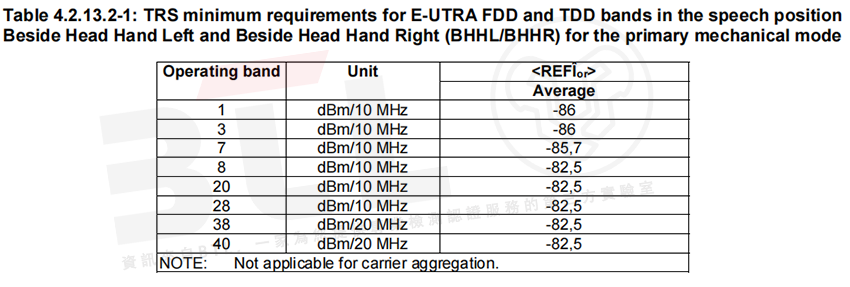

TRS (Total Radiated Sensitivity)

BTL pays attention to every certification standard update in time, and adjusts and formulates the test plan corresponding to the new released standard in the first moment. For this ETSI EN 301 908-13 V13.2.0 standard update, the BTL mobile communication OTA laboratory is ready to provide you with the updated version of CE standard LTE product certification test service at any time!
